Multi Socket PDU 4A 1U 19

Power distribution for 8 outputs
Load monitoring
Remote switching

Varenummer: WMDU00408000
inkl. mva.

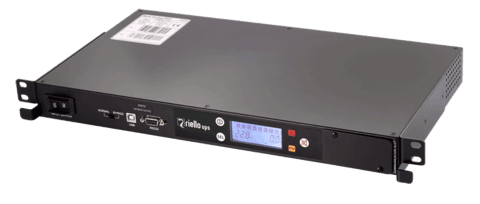

The Riello UPS Multi Socket PDU (MDU) is designed to distribute AC power from a single source to 8 outputs with advanced load monitoring and local or remote ON/OFF switching control of individual outlets.

The Riello UPS Multi Socket PDU provides best-in-class power distribution, enabling data center and information technology (IT) managers to effectively monitor and manage their rack environments.

The LCD display allows you to view the status of each output (ON / OFF), the input voltage and current, the current on each output and any alarm codes present.
At the top of the display, there are eight icons representing the status of the eight outputs: if the icon is on, the relative output is powered; if icon is off, the relative output is not powered; if the icon is blinking, the relative output is overloaded.

The Multi Socket PDU is equipped with an expansion slot for accessory communication boards like, for example, network board NetMan 204.
Input current up to 16A
Maximum output current for a single socket: 4A
LCD display
Current threshold for outputs settable by user.
Voltage and current threshold for input settable by user
USB and RS232 communication ports.
